16-Band SWIR Camera
16-Band SWIR Camera

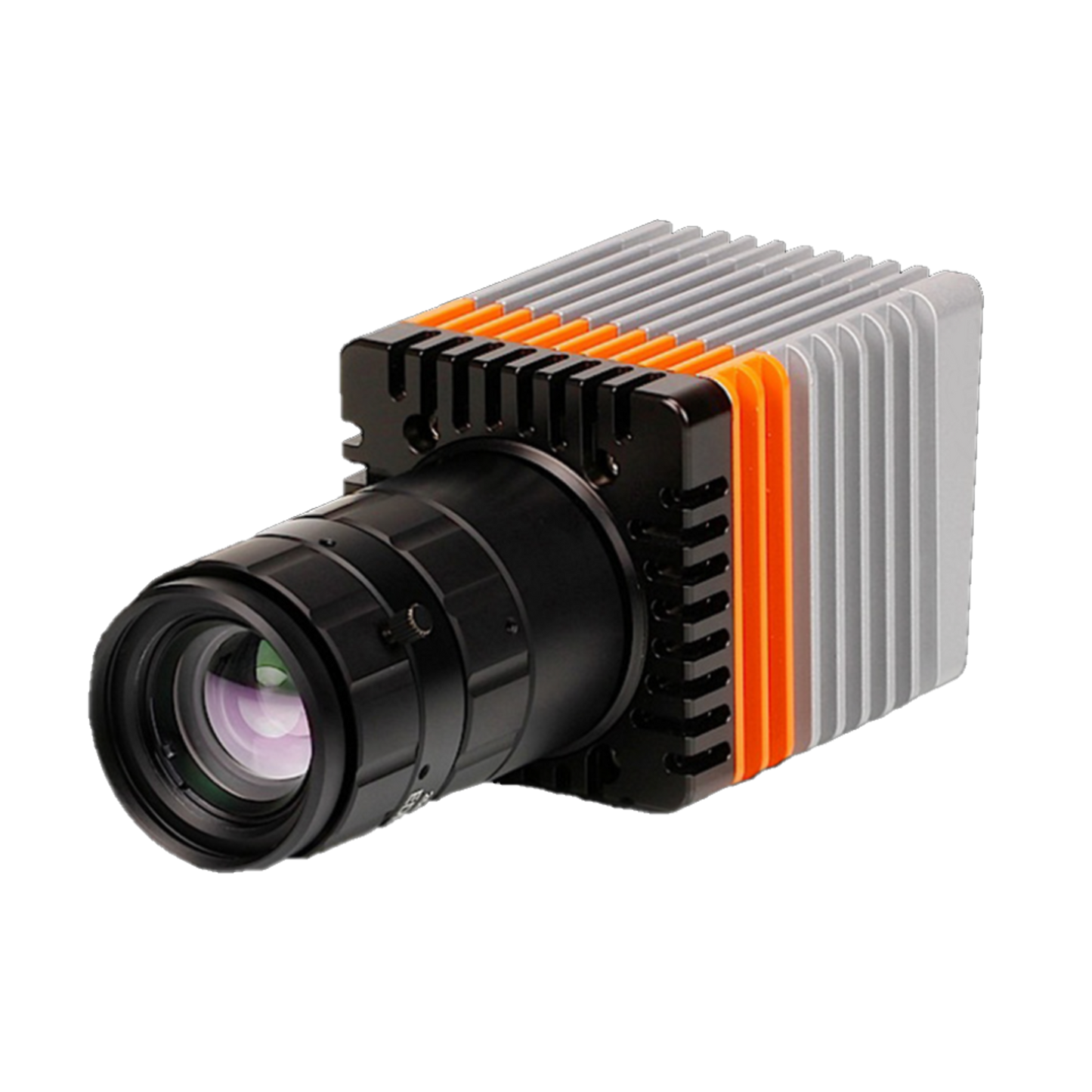

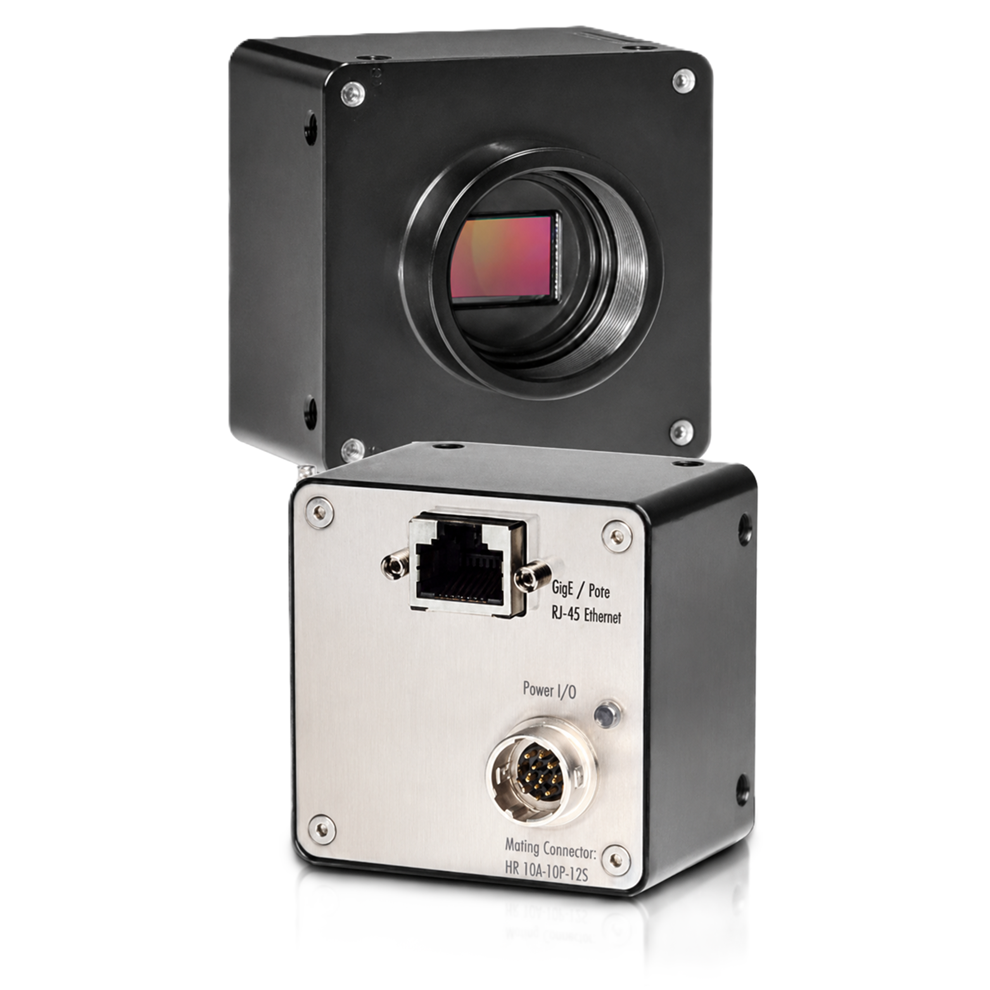

The MSC-SW16-1-A multispectral camera offers 16 nearly equally spaced bands across the short wave infrared spectral range. The multispectral camera incorporates a high performance InGaAs sensor modified with Spectral Devices proprietary multispectral filter array technology and is thermo electrically cooled for superior image quality.

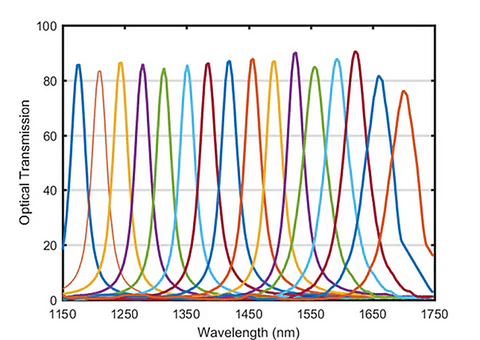

| Number of Bands | Band Locations | Pixel/Band |
|---|---|---|
| 16 | 1125, 1160, 1195, 1230, 1265, 1300, 1335, 1370, 1405, 1440, 1475, 1505, 1540, 1575, 1605, 1640 nm | 135 x 105 |
Supported by Multispectral Imaging Experts
Our scientists and engineers have years of experience developing multispectral imaging solutions.
Contact us today to discuss your multicamera multispectral imaging application.
