Agricultural LED Illuminator
Agricultural LED Illuminator

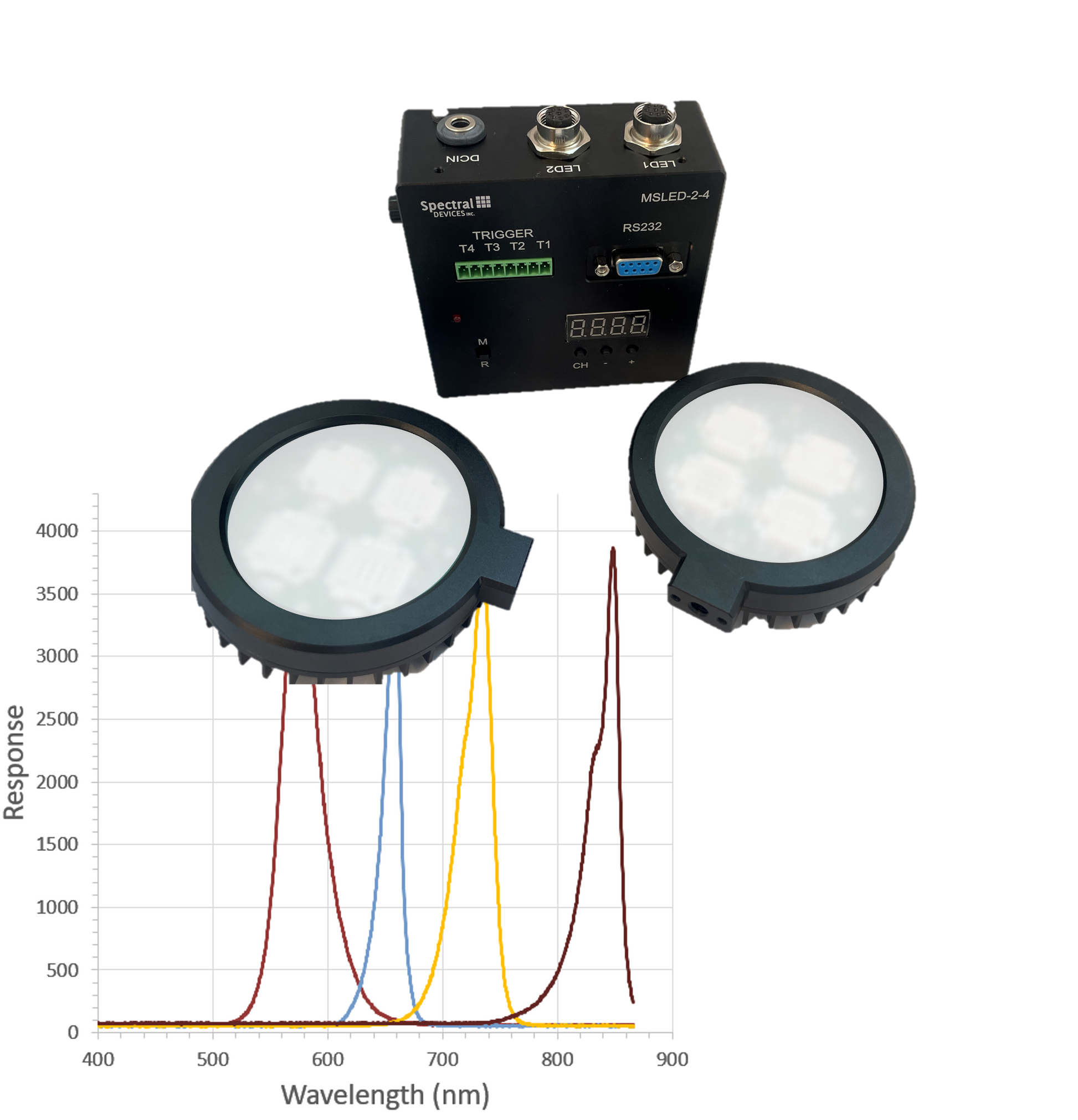

The MSLED-AGRI-2-4 consists of two LED modules each equipped with four independent LED channels. The four channels include: (i) 580 nm, which is specific to live vegetation, (ii) 660 nm, which is specific to the NDVI red channel, (iii) 735 nm, which is specific to the "red edge" channel, and (iv) 820 nm, which is specific to the NDVI NIR channel.
The dual LED illuminator creates a uniform diffuse lighting for agricultural multispectral imaging applications to gather the information you need to make informed decisions about your crops.
The illuminator is programmable and allows management of LED brightness on each of the 4 available channels either manually through the front panel or remotely through the RS232 interface or external trigger connector. The LED output offers 256 levels of adjustment and features a digital display.
Number of Bands | Band Locations |
---|---|
4 | 580, 660, 735, 820 |
![Agricultural LED Illuminator](http://spectraldevices.com/cdn/shop/files/agri_msled.png?v=1717695470&width=1445)
