8-Band NIR Multispectral Imaging System
8-Band NIR Multispectral Imaging System

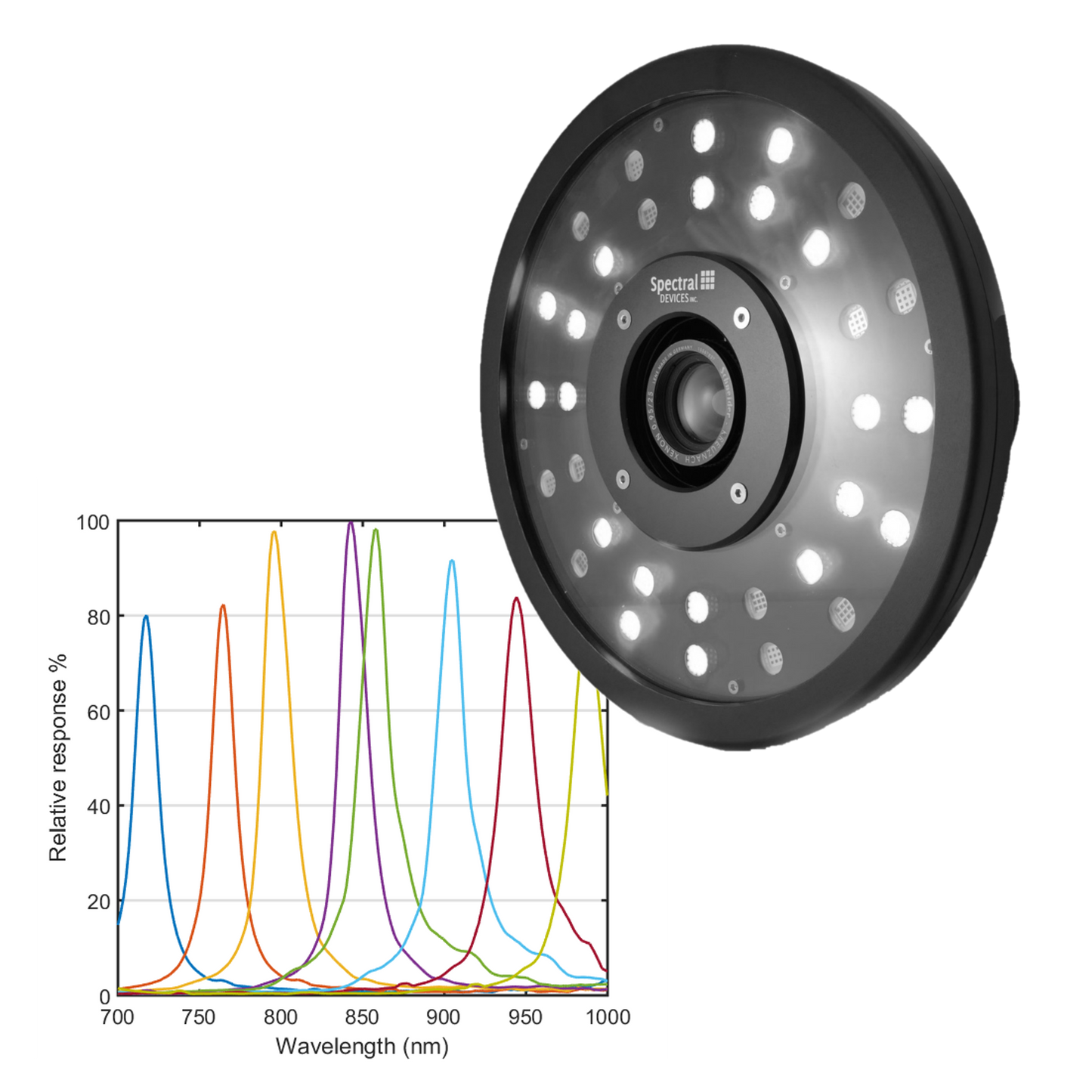

Our 8-band NIR multispectral imaging system includes an MSC2-NIR8-1-A multispectral camera offering nearly equally spaced bands across the near-infrared spectral range. The LED illuminator is equipped with 8 independent channels that are matched to camera. The system is an excellent choice when more spectral information is needed at the expense of spatial resolution. Compared to our 4-band systems, the 8-band NIR camera offers 3-fold higher sensitivity due the unique filter arrangement on the sensor. The imaging system is suitable for detailed spectral analysis of plants and biomedical research applications were a greater number of bands are needed.
Number of Bands | Band Locations | Pixel/Band |
---|---|---|
8 | 720, 760, 800, 840, 860, 900, 940, 980 nm | 256 x 256 |
Supported by Multispectral Imaging Experts
Our scientists and engineers have years of experience developing multispectral imaging solutions.
Contact us today to discuss your multicamera multispectral imaging application.
