RGB-NIR LED Illuminator

RGB-NIR LED Illuminator

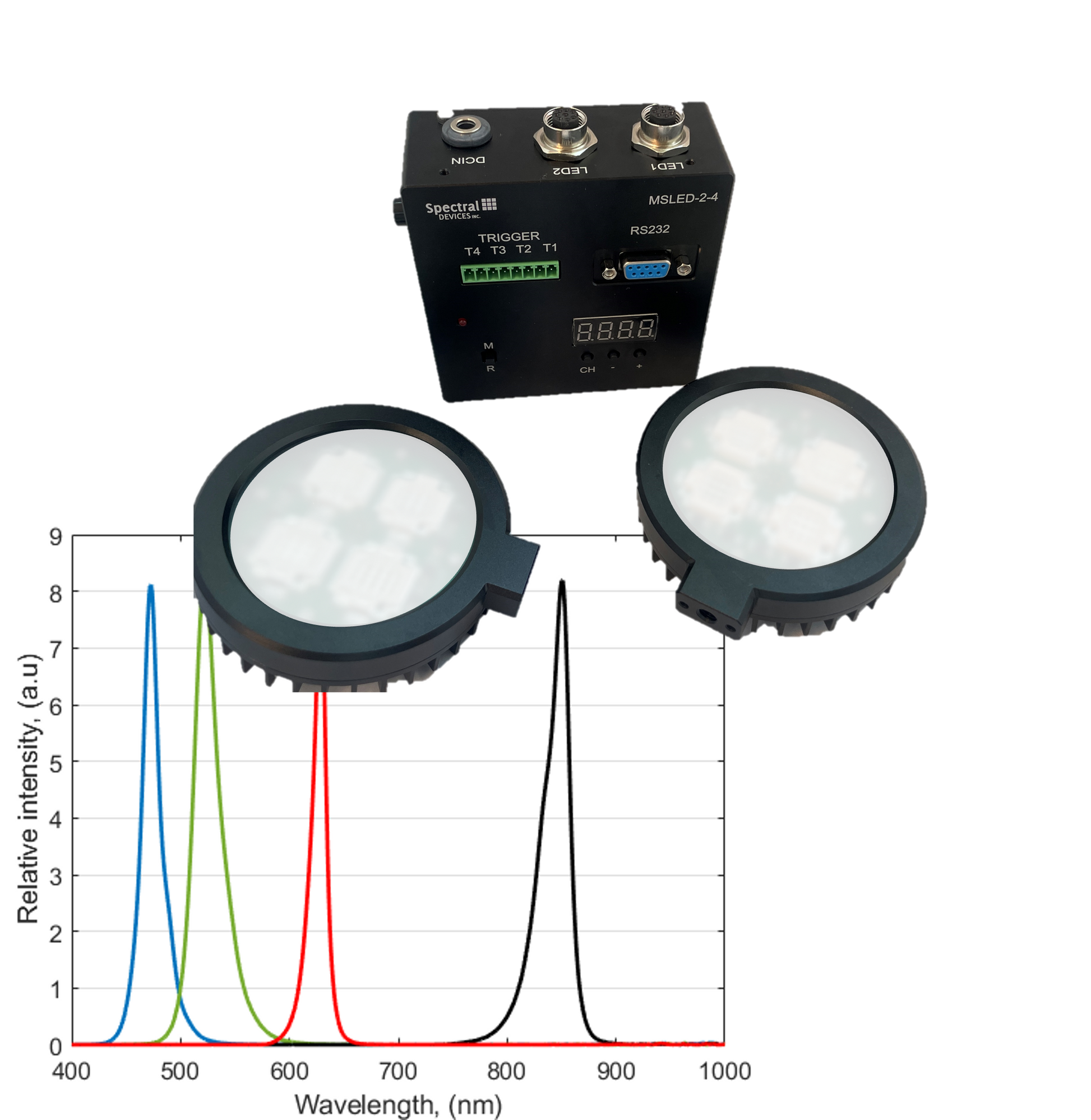

The MSLED-RGBN-2-4 consists of two LED modules each equipped with four independent LED channels - the conventional red (620 nm), green (520 nm), blue (470 nm), as well as near-infrared (850 nm) channel.

The dual LED illuminator creates a uniform diffuse lighting for a variety of multispectral imaging applications.

The illuminator is a programmable and allows management of LED brightness on each of the 4 available channels either manually through the front panel or remotely through the RS232 interface or external trigger connector. The LED output offers 256 levels of adjustment and features a digital display.
